01 / STANDARD CAMLOCK
Standard Camlock
Dependable, fundamental connections. Camlock couplings for a wide range of piping environments.

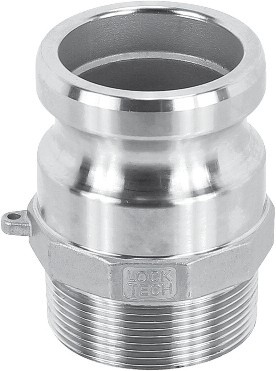

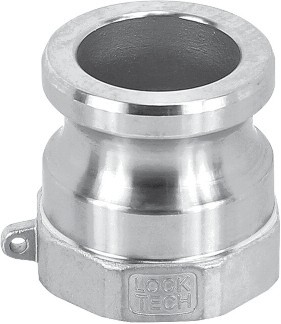

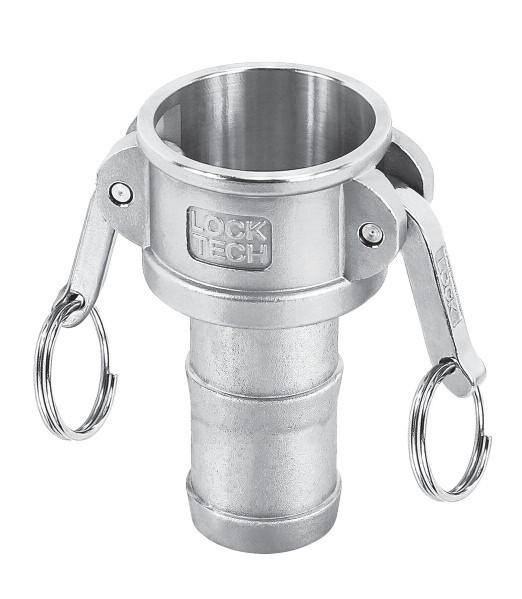

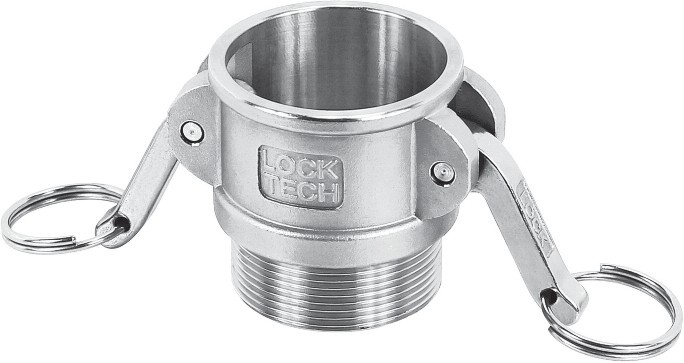

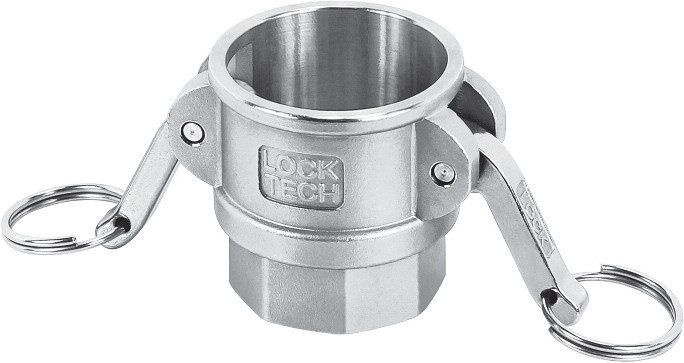

TYPE — A · B · C · D · F
TYPE LINEUP
Connection types
Select a type to include it in your inquiry.
TECHNICAL DATA
Specifications
| Body / Handle | CF8 / CF8 |
|---|---|
| Pin | STS304 |
| Size | 20A – 100A |
| Working pressure | 100 – 250 psi |
| Working temperature | −20°C – 200°C |
| Gasket | NBR / EPDM / PTFE / Food-grade silicone |
| Standard | A-A-59326 (equivalent to MIL-C-27487) |
Ranges shared by the Standard, Latch and Clip families as listed in our catalog — not a guaranteed rating for each item. Actual pressure and temperature ratings depend on size, gasket and operating conditions. Please contact us before selecting a product.
